Avant 528: dead rev counter, lying gauges, one faulty relay

Illustration

Three faults that weren’t three faults

My 528’s dashboard developed a collection of oddities that, on the face of it, had nothing to do with each other:

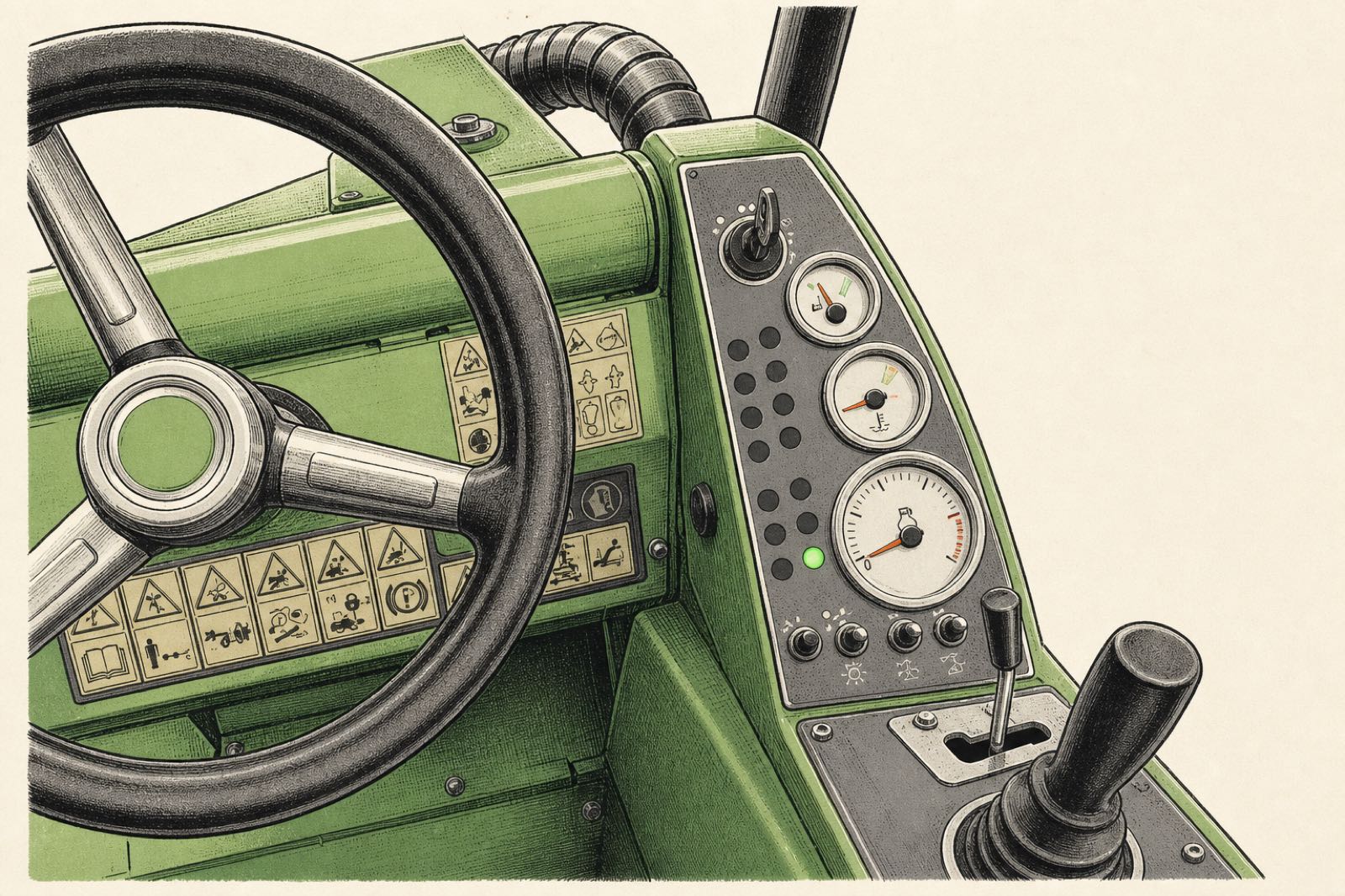

1. The rev counter read zero at cold start. Left undisturbed, it would slowly come to life after the machine had been running for a while, then die again instantly if I did something as innocent as turning on the lights.
2. Parts of the lights and warning lamps didn’t work. Not all of them; some circuits were fine, others simply dead.
3. Engaging the diff lock made the engine temperature gauge drop to zero. Switch the diff lock off, and the gauge climbed back up as if nothing had happened.

Each of these alone could send you down a long and expensive rabbit hole: a broken tachometer, a failed temperature sender, wiring chafed somewhere in the loom. Together they pointed somewhere else.

Illustration

What the pattern was telling me

The giveaway is that the faults interacted. A genuinely broken rev counter doesn’t care whether the lights are on. A dead temperature sender doesn’t recover the moment you release the diff lock. But that’s exactly how these behaved: turning one consumer on pushed another instrument off.

That’s the signature of a shared supply problem, not several independent failures. Somewhere, a group of circuits (the instruments and some of the lamps) were all drinking from the same compromised source, and there was only enough electricity to go around for some of them at a time. Add a load like the lights or the diff lock solenoid, and whatever was weakest dropped out. In hindsight, even the slow-warming rev counter fits: a marginal contact passing just enough current, improving slightly as things warmed up, collapsing the moment anything else drew from the same path.

Just as important was what the machine could do: it always started. Every single time, the starter cranked and the engine ran without complaint. The starter motor is by far the biggest electrical load on the machine, so a healthy start rules out the battery, the main cables and their terminals in one stroke. Whatever was wrong lived downstream, in a branch feeding only the instruments and part of the lighting. That eliminates half the electrical system before anyone picks up a multimeter.

I didn’t have this diagnosis when it was happening. At the time it just looked like three unrelated faults.

What I sent the dealer

Rather than driving in and gesturing at the dashboard, I wrote the symptoms down and sent them to the dealer’s workshop before the machine went in, including the triggers, not just the failures. The list above is essentially that fault report, translated from the Danish I sent.

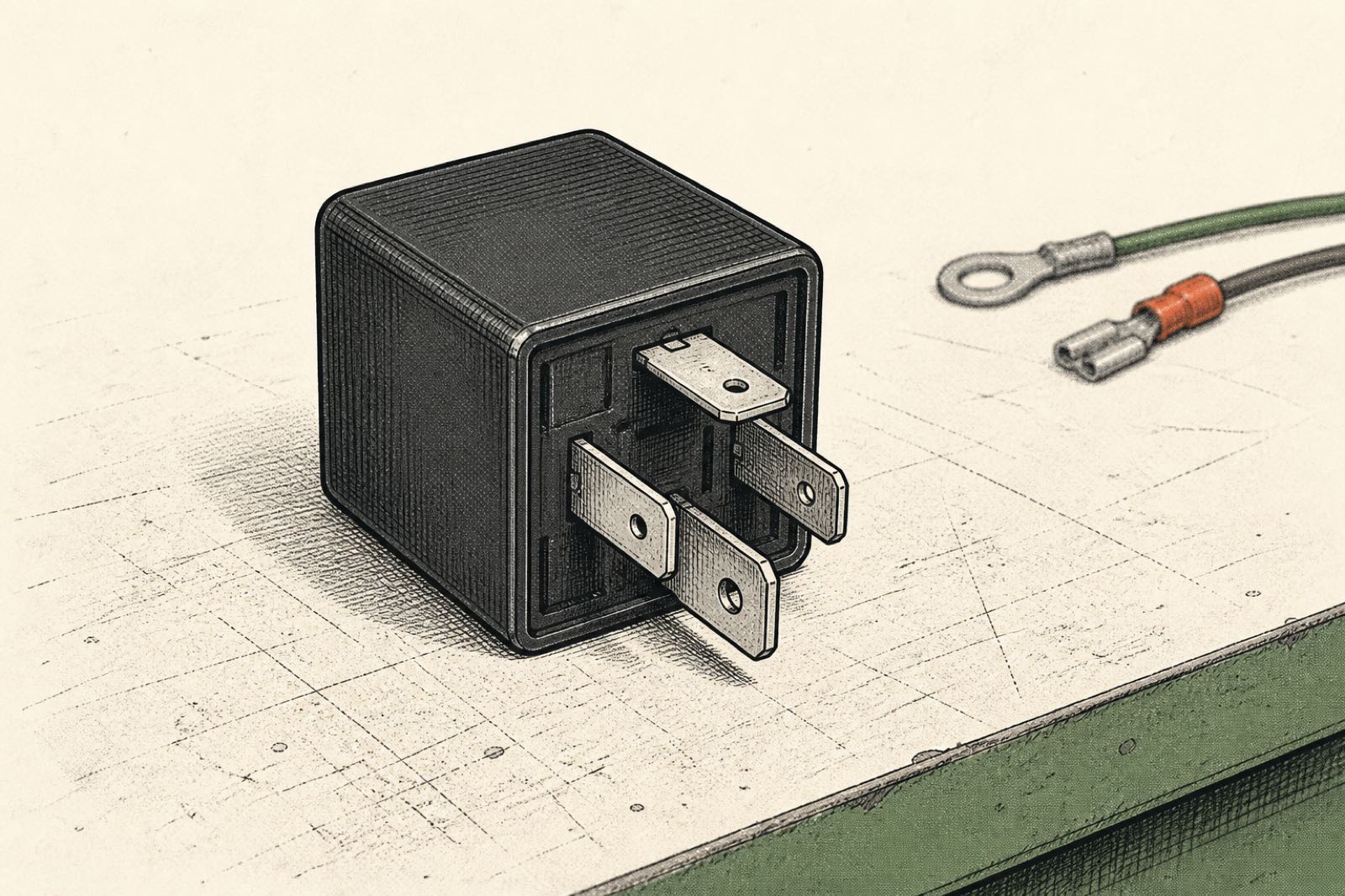

The culprit: one faulty relay

The answer that came back from the workshop was almost insultingly simple: a faulty relay. One failing component sitting upstream of the instruments and part of the lighting, and all three faults followed from it. Replace the relay, and the rev counter, the lamps and the temperature gauge all returned to normal at once.

The workshop handled it as a routine service job and didn’t tell me which relay it was or quote a part number, so I can’t give you one here. What I can say is that if your 528 shows the same cluster of symptoms, instruments and lighting misbehaving together while the engine runs fine, ask the dealer to check the relays feeding the instrument panel and lights before anyone starts chasing individual sensors.

Illustration

Has this happened to other owners?

After the fix I went looking for other reports of the same thing, in English, Danish and German. The short answer: almost nothing. Search for these symptoms on an Avant and you get car forums, tractor forums and Mini Coopers, but no Avant owners describing them in public. The closest I found was a thread on Arbtalk about an Avant 423 that lost all electrical power — dead dash, wouldn’t crank, battery and fuses checked out fine — which is a different failure from mine, but the same species. (If yours won’t crank at all, rule out the cheapest cause first: the aux hydraulics lever left on.)

That silence doesn’t mean the fault is rare. Avant problems get discussed in closed Facebook groups and dealer workshops, where the next owner searching at midnight can’t find them, which is much of the reason this site exists. So this is a living page: if your Avant has produced the same symptoms, or the same relay has failed on a different model, write in and I’ll add your report here, with credit.

What this cost, and what it could have cost

A relay is one of the cheapest electrical components on the machine, and swapping one is a five-minute job. The expensive version of this story is the one where each symptom gets chased separately: a new tachometer that doesn’t fix anything, a temperature sender swapped on suspicion, hours of loom-tracing. That’s not mechanic incompetence; it’s what happens when the symptoms arrive one at a time and nobody sees the pattern.

If your Avant’s instruments and lights are misbehaving together, check the relays before you condemn anything expensive. More symptoms, causes and fixes are collected in the troubleshooting guide and the per-series list of known issues.
